More Inputs, More Outputs, and SoundGrid Compatibility

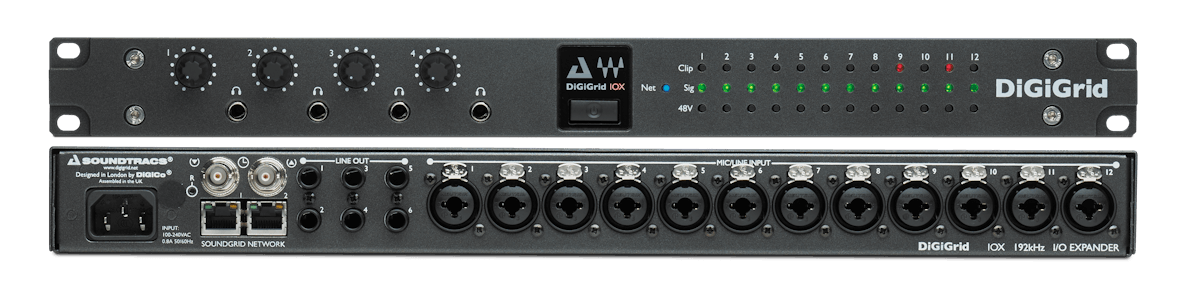

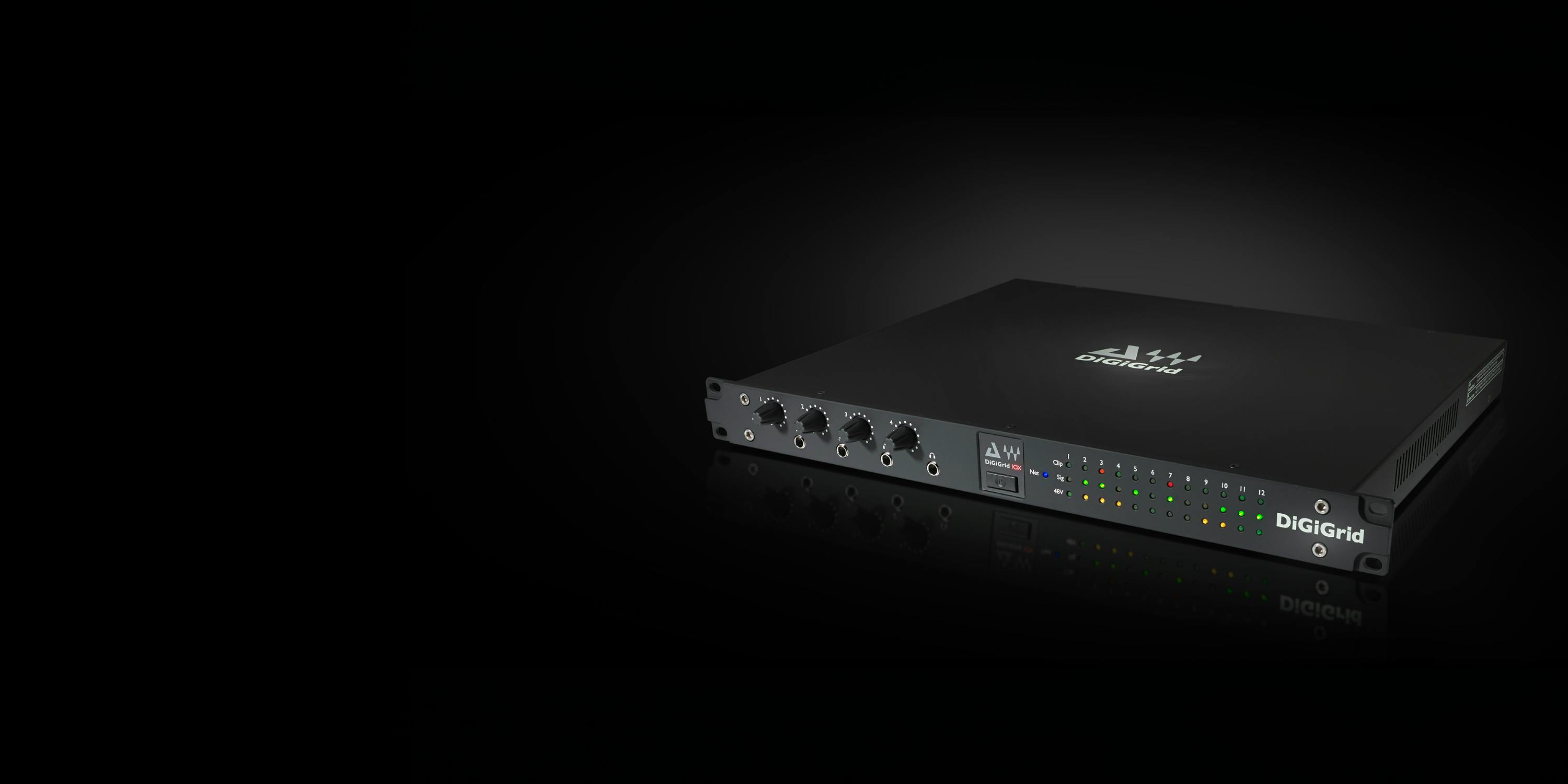

The DiGiGrid IOX advanced audio interface delivers high-resolution monitoring in the studio and control room alike, with 12 mic/line inputs that feature broadcast/studio-quality preamps, 6 line outputs, and 4 powerful headphone outputs to provide independent mixes for each musician.
Connect the IOX to a SoundGrid server, and run up to hundreds of SoundGrid-compatible plugins with ultra-low, 0.8 millisecond latency—all integrated in your DAW of choice.
ASIO- and Core Audio-compliant audio I/O
12 mic/line inputs with broadcast/studio-quality preamps
Connects via a single Ethernet cable (Cat 5e/Cat 6)
6 line outputs, 4 headphone outputs
Track, mix, and monitor in real time with SoundGrid server
Quick-view front panel metering, high-resolution software metering
High-definition 192 kHz AD conversion
Compatible with eMotion LV1, SuperRack, and SoundGrid Studio
Setups
Native DAW with a DiGiGrid IOX
This setup shows a typical studio setup that includes a host computer with a Native DAW and a single I/O interface connecting mics, instruments, headphones and monitors.
DiGiGrid IOX
Host computer with a Native DAW
One host computer, DiGiGrid IOX and a SoundGrid DSP server
You probably want to run more plugins. Perhaps you want to record small ensembles and then mix with a large number of plugins, or record and monitor with very low latency.
By adding a SoundGrid DSP server to your SoundGrid network you can offload your audio processing. This greatly increases the number of plugins you can use simultaneously. Plus, it enables you to use the eMotion ST mixer, which lets you create personalized monitor mixes from your DAW mix and from outside sources, and also allows you to open 64 StudioRacks and use them for low-latency monitoring.
DAW (Pro Tools, Nuendo, Cubase, Logic, etc.) with SoundGrid Studio installed
High-count input SoundGrid I/O with four headphone outs – DiGiGrid IOX
SoundGrid DSP Server
One Host Computer, One I/O with a DSP Server, One Expansion I/O Unit, One DAW
Need more I/O channels? Need to run more plugins? need super-low latency recording with plugins in real time?
By adding the IOS's built-in DSP server to your SoundGrid network you can offload your audio processing. This greatly increases the number of plugins you can use simultaneously. Plus, it enables you to use the eMotion ST mixer, which lets you create personalized monitor mixes from your DAW mix and from outside sources, and also allows you to open 64 StudioRacks and use them for low-latency monitoring.
DAW (Pro Tools, Nuendo, Cubase, Logic, etc.) with SoundGrid Studio installed
Multi-input SoundGrid I/O device with server – DiGiGrid IOS
SoundGrid expansion I/O – DiGiGrid IOX
One host computer, DiGiGrid IOX and a DiGiGrid IOC
Add a DiGiGrid IOC and you pick up another 2 mic inputs, 16 AES inputs and outputs, 8 line inputs and outputs ADAT I/O, and 2more individual headphone outputs. Connect the IOC to the built-in Ethernet switch on the rear of the IOX. You can add up to eightSoundGrid I/O devices to a single host. Each of these can be accessed by any computer on the network.
Audio and clock pass through the same Ethernet cable. This means of distributing clock is called “Sync over Ethernet” (SoE) and isused between all SoundGrid devices. To clock the entire network to an external clock source such as house sync, use Word Clock or Digital In as clock master for the IOX. If the IOX is the SoE master, then the entire network will be locked to this external source.
Running Various DAWs Simultaneously Using a Single DiGiGrid IOX
This configuration is for running audio from multiple DAWs simultaneously and mixing them in real time.
DiGiGrid IOX
Host computer with Native DAW
Computer 2 – Native DAW
Computer 3 – Native DAW
Computer 4 – Native DAW
1 GB network switch
Each of the four computers is connected to the DiGiGrid IOX via a 1 GB network switch using a single Cat 5e or Cat 6 Ethernet cables.
Every computer in a SoundGrid network uses the SoundGrid driver to stream audio into the SoundGrid network. In this setup the main host computer running the SoundGrid Studio Application patches between all host computers within the network and configures their ASIO/Core Audio driver ins and outs.
Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)

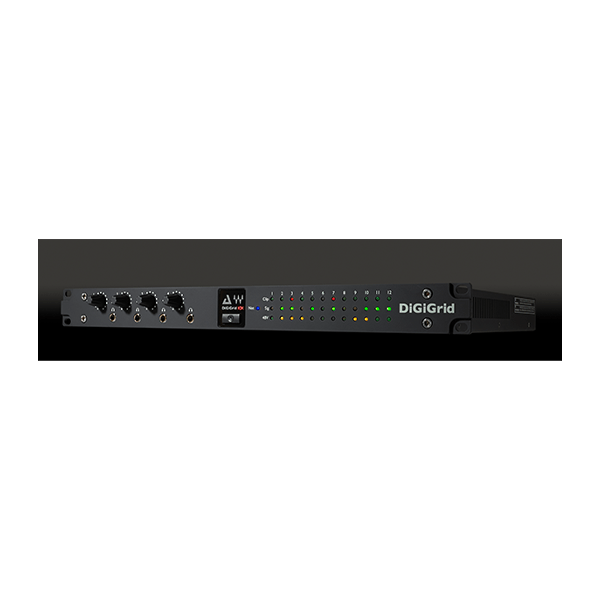

12 channel mic/line inputs (on XLR/TRS combo)
6 channel line outputs
Word Clock I/O
2 SoundGrid ports (RJ45s)
Reset switch
4 headphone outputs with analog level knobs; range: Off to +15 dB
Clock: Word Clock input, SoundGrid (SoE), Internal
1 AC input
Multiple broadcast level format settings (jumpers on all analog I/Os)
Inputs
Input Impedance: Mic: 2K5 / Line: 8K0 Ohms
Gain Range: Mic: 0 dB to +52.5 dB in 7.5-dB steps / Line: -10 dB to +42.5 dB in 7.5-dB steps Fine control provides an additional 0dB to 7dB in 0.5-dB steps
Maximum Input Level: Mic: +26 dBu / Line: +36 dBu
Mic Equivalent Input Noise: > -126 dB (150 Ohm source, gain +59.5 dB)
Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
Outputs
Maximum Output Level: +22 dBu
Residual Output Noise: <90 dB (20 Hz to 20 kHz)
Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
Output Impedance: 50 Ohms
Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
Dimensions
Width: 48.26 cm / 19 inches Height: 4.36 cm / 1U Depth: 35.6 cm / 14.01 inches Device Weight: 4.5 kg / 9.92 lbs
