DSPRO StageGrid 1000

Compact SoundGrid I/O expansion, ideal for the eMotion LV1 mixer

USW379-700C-362

[{"nodeGUID":"0efdfbb0-5e6c-4a8d-9cf2-05bbd531f5ec","nodeID":341,"documentName":"DSPRO StageGrid 1000","documentID":0,"documentUrlPath":"/hardware/dspro-stagegrid-1000","thumb":"/images/products/hardware/600/dspro-stagegrid-1000.png","msrp":2399.000000000,"skuPrice":2399.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":850,"skuName":"","skuParentSKUID":0,"skuEnabled":true,"skuNumber":"USW379-700C-362","note":"","documentPageDescription":"A compact I/O device for eMotion LV1 live mixing systems. Use this versatile unit close to your mixing console to add more inputs and outputs at FOH or monitors, or on stage to add more inputs and outputs for stage performers.","tagline":"","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":320,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"https://assets.wavescdn.com/pdf/hardware/dspro-stagegrid-1000-v2.pdf","sbsIncludedIn":0,"addToCartStatus":0,"isWishlist":true,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]

Product, Setups, Support

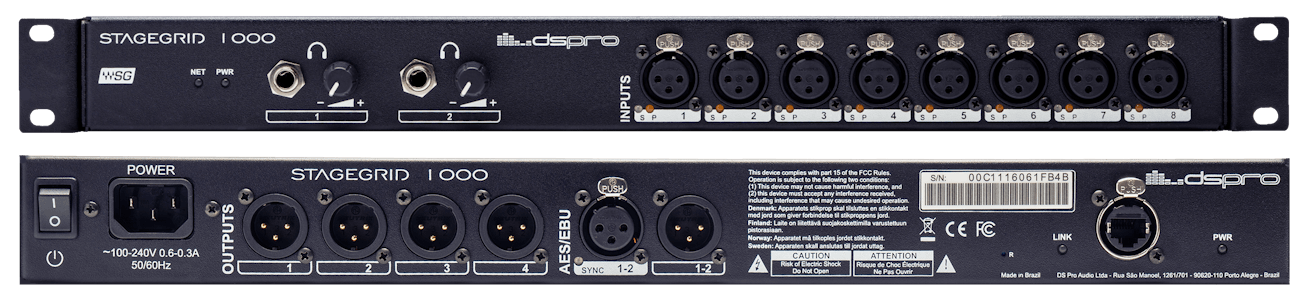

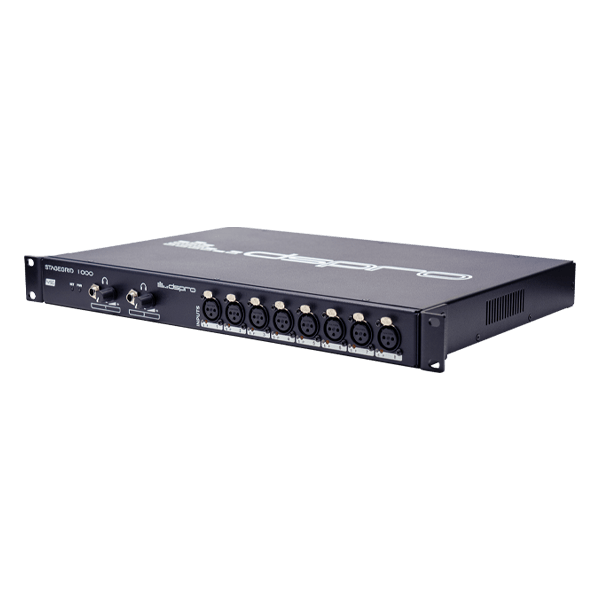

Compact 10 In/8 Out SoundGrid Expansion Unit

With 8 digitally controlled mic/line ins, 4 balanced analog outputs, and AES/EBU stereo digital I/O, this 1U rack unit offers the perfect balance between size and functionality. Delivering exceptional, no-compromise sound quality and reliability, it’s ideal for expanding the eMotion LV1 mixer.

Whether placed by your console for more ins and outs monitors or at FOH, or on stage to expand ins and outs for performers, this versatile unit handles the most demanding live mix environments.

Supports sample rates from 44.1 kHz to 96 kHz
Compact I/O expansion for the eMotion LV1 live mixer
2 stereo headphone outputs with independent volume controls
Ideal for use at Front of House, or for monitors
Ethernet connection for full SoundGrid compatibility
8 microphone/line inputs with XLR connectors
Interface with SoundGrid host to process audio at ultra-low latency
4 balanced analog outputs with XLR connectors
Rugged, road-worthy, 1U rack mountable unit
AES/EBU stereo digital I/O with XLR connectors

Setups

In the setup diagram below, on-stage instruments, microphones, and headphones are connected to the StageGrid 4000 and StageGrid 1000 units, which are remotely controlled from the LV1 mixer at front-of-house.

An additional StageGrid 1000 unit is connected at FOH to provide the FOH engineer with headphone outputs and talkback microphone inputs. Incoming audio is processed on a SoundGrid Server and then outputted to stage-monitors, stage headphones, the PA system, and FOH headphones.

Host computer running the eMotion LV1 mixer (see system requirements)
DSPRO StageGrid 1000 I/O unit
SoundGrid Server (add a second server for processing redundancy)
DS Pro StageGrid 4000 stagebox
SoundGrid-qualified network switch

For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.

Support

General

8 Analog mic/line Inputs
4 Analog line outputs
1 Stereo AES / EBU Digital input
1 Stereo AES / EBU Digital output
Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
Two headphone outputs
A SoundGrid Ethernet port

Analog Inputs

Impedance: 2.86 kOhms
Gain range: -4 dB to 60 dB
Max input level: 28 dBu (-4 dB gain)
Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
Phase Shift: <10° at 20 Khz

Analog Outputs

Output impedance: 50 ohms
Max output Level (0dBFS): 24 dBu
Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz

AES/EBU IN/OUT

Standard: AES3 (2009)
Sample rates: 44.1, 48, 88.2 and 96 kHz
Impedance: 110 ohms

Headphones

Output Power: 150 mW per channel on 16 ohms
Dynamic range: 100 dB

SoundGrid

Interface: Gigabit Ethernet
Connector: Neutrik EtherCON

Power supply

Voltage: 110 or 240 VAC
Frequency: 50 Hz or 60 Hz Power: 60 W

Environmental specifications

Operating temperature: 0°C to 40°C
Relative humidity: Up to 90% non-condensing

Dimensions

Height: 44 mm / 1.75 in (1RU)
Width: 430 mm / 19.92 in (for 19” rack)
Depth: 300 mm / 11.81 in (not including connectors)
Weight: 2.89 Kg

SpecSheet

StageGrid 1000 SpecSheet
