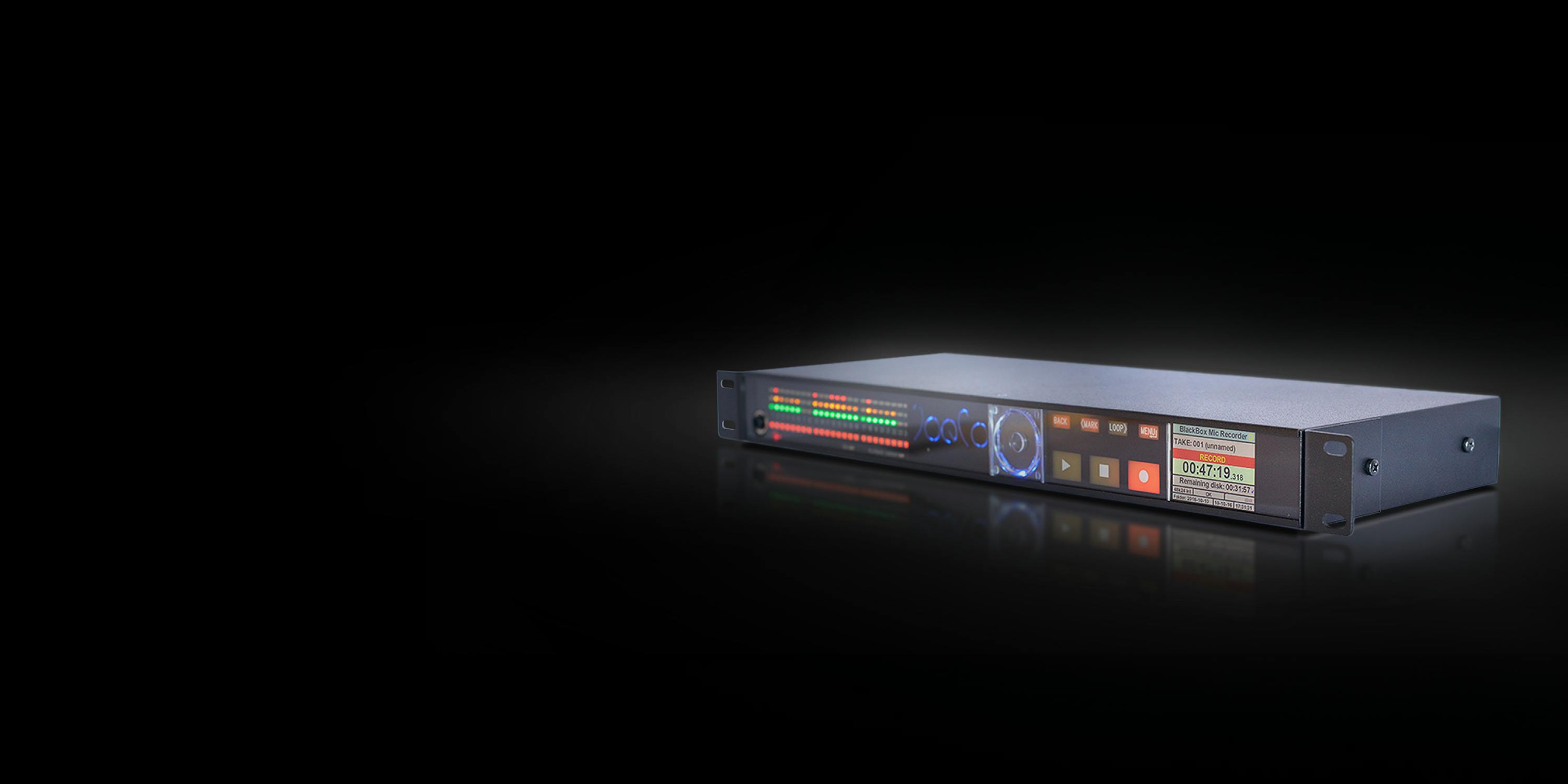

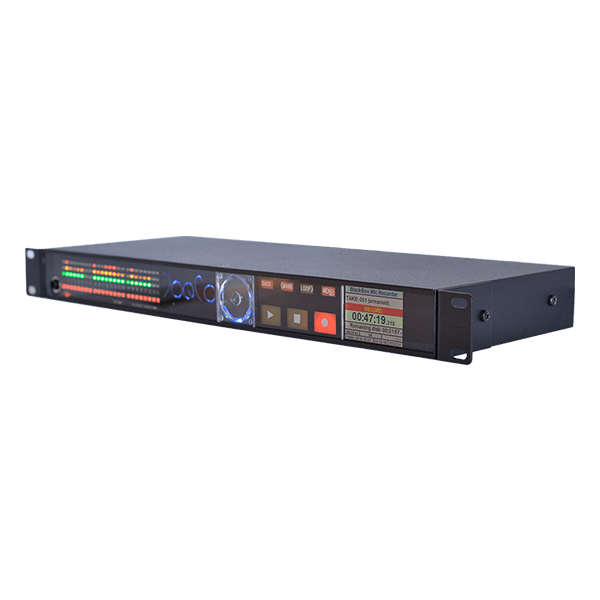

JoeCo BlackBox SoundGrid Recorder — BBSG24MP
SoundGrid-enabled I/O with multitrack, solid-state recording
JOECOBB
[{"nodeGUID":"11fd4006-c0cc-46c0-9496-e9e52d3e04ba","nodeID":359,"documentName":"JoeCo BlackBox SoundGrid Recorder \u2014 BBSG24MP","documentID":0,"documentUrlPath":"/hardware/joeco-blackbox-soundgrid-recorder-bbsg24mp","thumb":"/images/products/hardware/600/joeco-blackbox-soundgrid-recorder-bbsg24mp.png","msrp":0.000000000,"skuPrice":0.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":688,"skuName":"","skuParentSKUID":0,"skuEnabled":false,"skuNumber":"JOECOBB","note":"\u003Cdiv class=\u0022w-max border bg-gray-800 border-gray-500 rounded text-sm lg:text-base py-2 px-2 lg:px-4 mt-4 lg:mt-8\u0022\u003EContact JoeCo for more information\u003C/div\u003E","documentPageDescription":"SoundGrid-enabled I/O and recorder with 24 superb-quality mic/line inputs, 24 line outputs and two headphone outs. Record or play back up to 24 audio channels with a switchable recording source: SoundGrid network or local analog inputs.","tagline":"","departmentID":9,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":338,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"https://assets.wavescdn.com/pdf/hardware/joeco-blackbox-soundgrid-recorder-bbsg24mp.pdf","sbsIncludedIn":0,"addToCartStatus":1,"isWishlist":true,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
""
Requires a SoundGrid audio interface driver installed in order to function. To install the driver, follow these steps.
Product, Support, Setups
Versatile SoundGrid-Compatible
Multitrack Recording and I/O
The BlackBox SoundGrid Recorder offers 24 bidirectional SoundGrid channels alongside 24-in/24-out analog channels and two headphone outs. The SoundGrid host application controls all input channel features: mic/line, gain, 48V phantom power, pad, phase-reverse switch, HPF, and limiter.
The BBSG24MP works standalone, or can serve as both the FOH recording device and the I/O for monitoring, playback and talkback—you don’t need two separate FOH computers anymore.
- Ideal I/O device for the eMotion LV1 live sound mixer
- Per channel controls: mic/line, gain, 48V, pad, phase, HPF, limiter
- SoundGrid I/O with 24 bidirectional channels
- Can operate standalone with analog I/O
- 24 in/out analog I/O, with dual independent headphone outs
- Compact, rugged, rack-mountable 1U enclosure
- Record/play back up to 24 channels @ 96 kHz/24 bit
- Touch-sensitive control panel with intuitive operation
Support
System
Sample Rate
44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit Depth
16/24 bit
Local Disk
Interface: USB2 (compatible with USB3)
Disk Format: FAT32 – compatible with both Mac and Windows
File Format: Broadcast WAV (BWAV)
Local Record/Playback
Up to 24 channels @ up to 96kHz / 24 bit
External Drive
USB2/3 hard drive or fast memory stick
File type: Standard mono Broadcast WAV
SoundGrid I/O
Up to 24 channels of 24bit 96kHz audio in both directions simultaneously

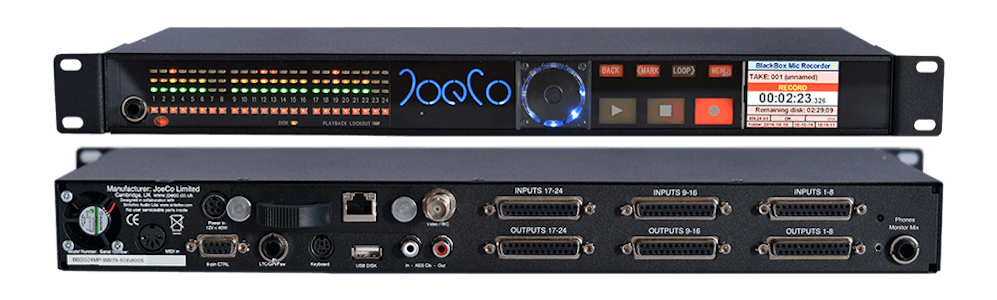

Analog I/O
Inputs
24 switchable microphone / line inputs on channel by channel basis via 3 off D-Sub 25F connectors with industry standard Tascam™ analog pinout
Mic Preamps
Gain: +22 to +82dB continuously variable;
Soft limiter: software selectable on/off;
Phantom power 48V selectable on/off;
Hi-pass filter: -6dB @ 100Hz, 12dB/octave
Max input level: +21dBu;
EIN: <-124dBu (20-22kHz)
THD: <-110dBFS (20-22kHz @ -10dBFS input)
Cross talk rejection > 80dB @ 20kHz
ZIN: >2kOhm (differential)
Outputs
24 electrically balanced analog outputs at line level via 3 off DSub 25F connectors; Stereo headphone output
Clock
Standalone Mode (no SoundGrid)
Word clock, AES/EBU or SPDIF clock, Video reference and SMPTE linear timecode (all std frame rates supported)
SoundGrid Mode
Synchronises its audio clocks as a slave to the SoundGrid system.
Physical
Dimensions
17.12" (435mm) x 1.73" (44mm) x 6.69" (170mm)
Unit Weight
> 6.6lbs (3kg)
Mounting
Standard rack mount, 1 RU
Power
12V DC (Kycon 4-pole connector), 35W max. External universal PSU included
Setups
In the below setup, on-stage instruments and microphones are connected to a SoundGrid stagebox (such as SoundStudio STG-2412 or DSPRO StageGrid 4000) which is remotely controlled from the eMotion LV1 mixer at front-of-house.
The BBSG24MP is used for recording the show, playing back audio, talckback and for virtual soundcheck.
The audio is processed on a SoundGrid Server and then outputted to stage-monitors and/or the PA system.
- Host computer running the eMotion LV1 mixer (see system requirements)
- A SoundGrid Stagebox
- SoundGrid Server (and a redundant server)
- BlackBox SoundGrid Recorder
- SoundGrid-qualified network switch
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
