SoundGrid Server Support Information

Aug 01, 2024

Find information about SoundGrid Servers including dimensions, racking options and support notes. This page is best viewed in landscape mode on mobile devices.

Server ModelFront panelSize & RackingWeight & DimensionsSupport notes

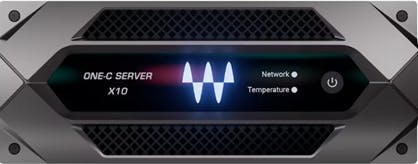

Server One-C V3 (x10)>Server One-C V3 (x10)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight: 4.46 kg / 9.85 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10

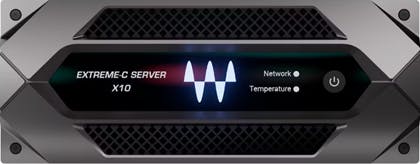

Extreme Server-C V3 (x10)>Extreme Server-C V3 (x10)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight: 4.46 kg / 9.85 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
Extreme Server V5 (x10)>Extreme Server V5 (x10)2U, Full rack, Rack ears includedLength: 48.3 cm / 19 inches
Height: 8.9 cm / 3.5 inches
Device weight: 8.3 kg / 18.4 lbs
Package weight:10.8 kg / 24 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
Titan V1>Titan V12U, Full rack, Rack ears includedLength: 48.2 cm / 19 inches
Height: 8.8 cm / 3.5 inches
Device weight: 7.0 kg / 15.4 lbs
Package weight:8.9 kg / 19.6 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
Titan-R V1>Titan-R V12U, Full rack, Rack ears includedLength: 48.2 cm / 19 inches
Height: 8.8 cm / 3.5 inches
Device weight: 7.0 kg / 15.4 lbs
Package weight:8.9 kg / 19.6 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
Proton Server V2>Proton Server V21U, Half rack, Racking accessories sold separately:Length: 19.5 cm / 7.6 inches
Height: 3.8 cm / 1.5 inches
Device weight: 1.06 Kg / 2.34 lbs
Package weight:2 kg / 4.4 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10
Proton Duo (server and host)>Proton Duo (server and host)1U, Half rack, Racking accessories sold separately:Length: 27.7 cm / 10.9 inches
Height: 4.2 cm / 1.7 inches
Device weight: 2.3 kg / 5.1 lbs
Package weight:3.4 kg / 7.6 lbs
Not compatible with the following applications:

eMotion LV1 V9, MultiRack SoundGrid V9, SoundGrid Studio V9, SG Rack for VENUE V9 and V10

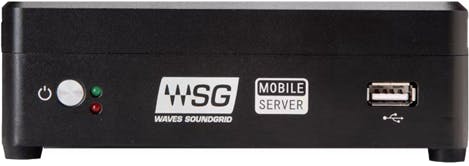

Mobile Server>Mobile ServerNot rack mountableLength: 13.97 cm / 5.5 inches
Height: 3.78 cm / 1.49 inches
Device weight: 0.680 kg / 1.5 lbs
Package weight:2.7 kg / 6 lbs
Supported up to V14.X Firmware (including)

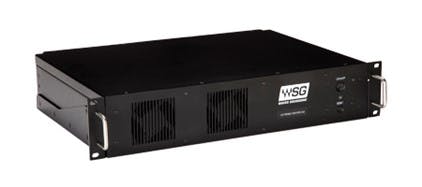

Extreme Server V3 (X6)>Extreme Server V3 (X6)2U, Half rack, Racking accessories sold separately:Length: 48.3 cm / 19 inches
Height: 8.9 cm / 3.5 inches
Device weight: 8.3 kg / 18.4 lbs
Package weight:10.8 kg / 24 lbs
Discontinued
Supported up to V14.X Firmware (including)

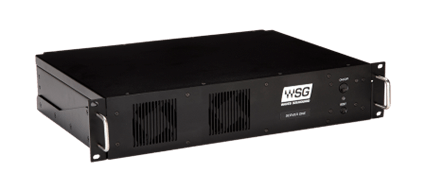

Extreme Server V4 (X9)>Extreme Server V4 (X9)2U, Full rackLength: 48.3 cm / 19 inches
Height: 8.9 cm / 3.5 inches
Device weight: 8.3 kg / 18.4 lbs
Package weight:10.8 kg / 24 lbs
Discontinued
Extreme Server-C V1 (X6)>Extreme Server-C V1 (X6)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight:4.46 kg / 9.85 lbs
Discontinued
Supported up to V14.X Firmware (including)
Extreme Server-C V2 (X9)>Extreme Server-C V1 (X6)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight:4.46 kg / 9.85 lbs
Discontinued
Server One V3 (X6)>Server One V3 (X6)2U, Full rackLength: 48.3 cm / 19 inches
Height: 8.9 cm / 3.5 inches
Device weight: 8.3 kg / 18.4 lbs
Package weight:10.8 kg / 24 lbs
Discontinued
Supported up to V14.X Firmware (including)

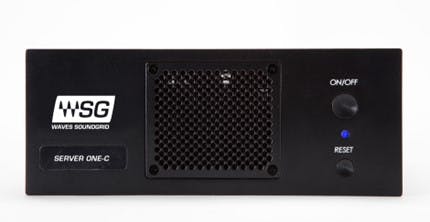

Server One-C V1 (X6)>Server One-C V1 (X6)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight:4.46 kg / 9.85 lbs
Discontinued
Supported up to V14.X Firmware (including)

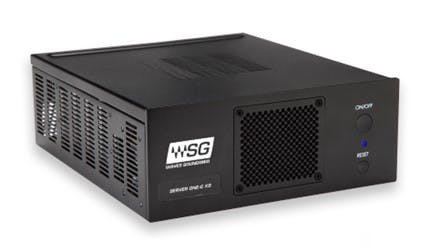

Server One-C V2 (X9)>Server One-C V1 (X6)2U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight:4.46 kg / 9.85 lbs
Discontinued

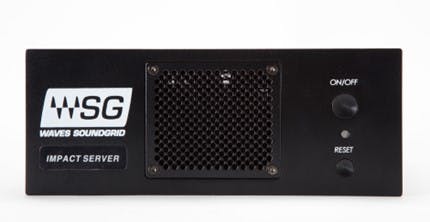

Impact Server V4Impact Server V42U, Half rack, Racking accessories sold separately:Length: 22.1 cm / 8.7 inches
Height: 8.61 cm / 3.39 inches
Device weight: 3.2 kg / 7.1 lbs
Package weight:4.46 kg / 9.85 lbs
Discontinued
Supported up to V14.X Firmware (including)

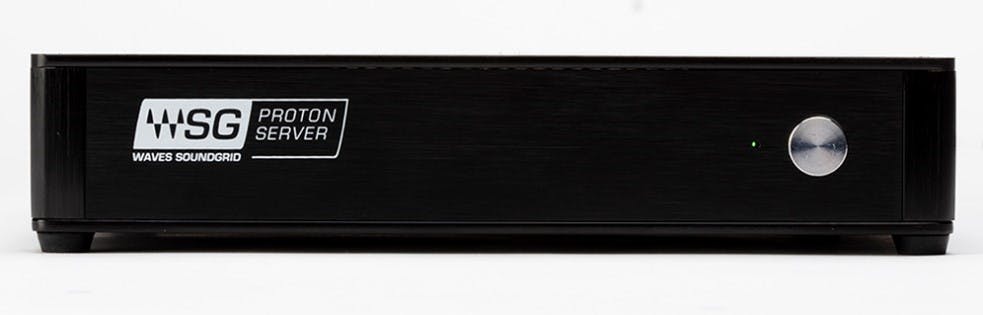

Proton Server V1Proton Server V11U, Half rack, Racking accessories sold separately:Length (front to back): 20.5 cm / 8 in
Height: 3.8 cm / 1.5 in
Device weight: 1.06 Kg / 2.34 lbs
Discontinued
