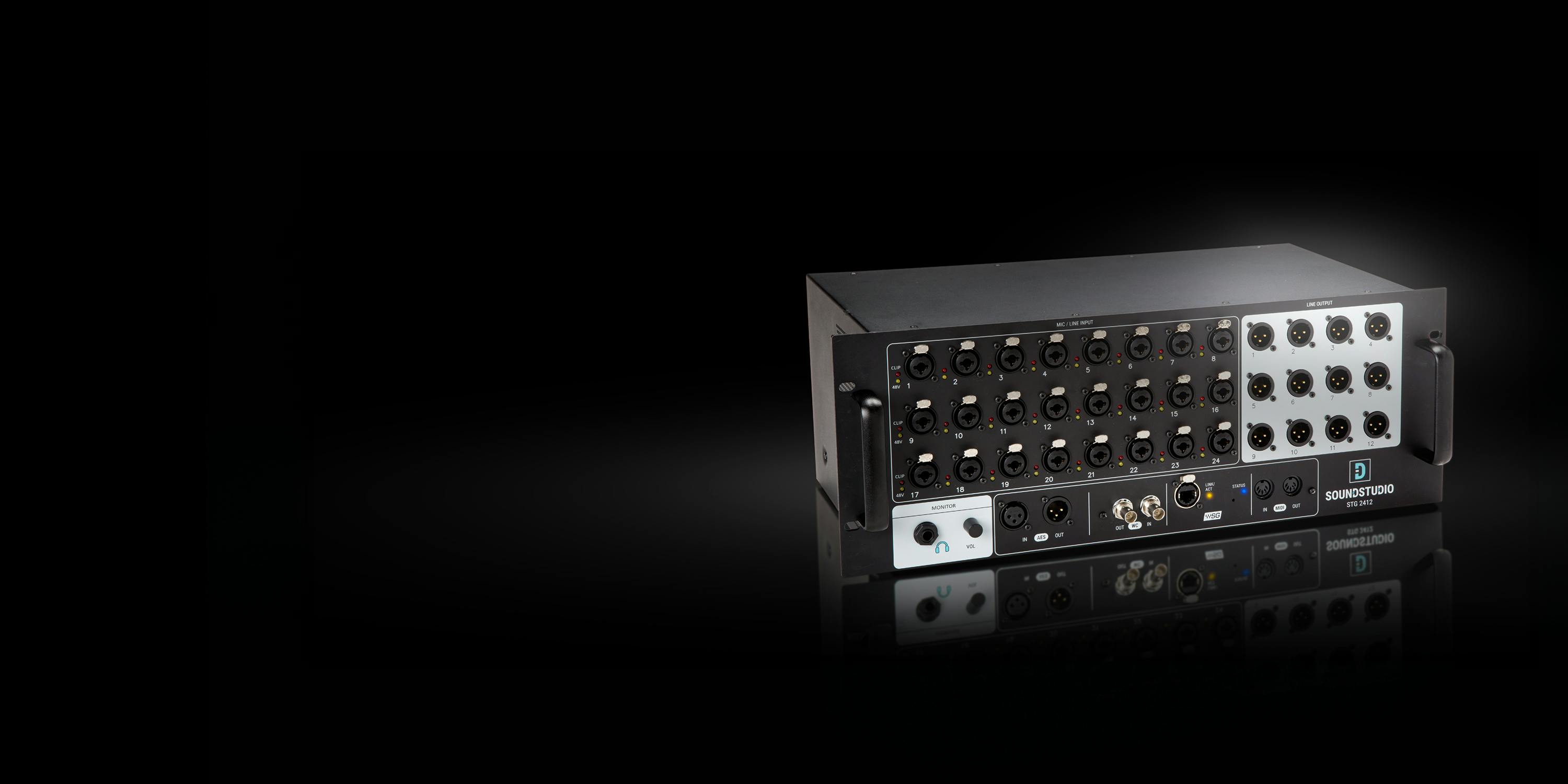

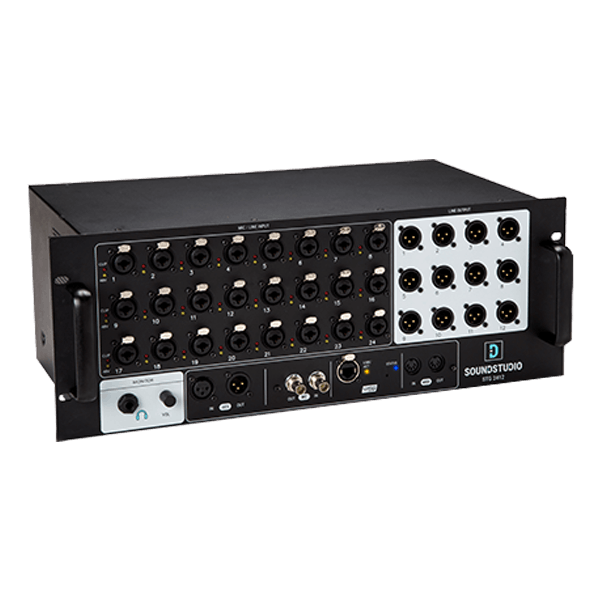

SoundStudio STG-2412
3U, 24-in, 12-out stagebox for the eMotion LV1 live mixer
USW379-700C-283
[{"nodeGUID":"2078b6b7-e4a6-4232-827e-0519f4932658","nodeID":387,"documentName":"SoundStudio STG-2412","documentID":0,"documentUrlPath":"/hardware/soundstudio-stg-2412","thumb":"/images/products/hardware/600/soundstudio-stg-2412.png","msrp":4299.000000000,"skuPrice":4299.000000000,"discount":0,"mainOrder":0,"includedInSBS":0,"skuid":642,"skuName":"","skuParentSKUID":0,"skuEnabled":false,"skuNumber":"USW379-700C-283","note":"\u003Cdiv class=\u0022w-max border bg-gray-800 border-gray-500 rounded text-sm lg:text-base py-2 px-2 lg:px-4 mt-4 lg:mt-8\u0022\u003E\u003Cp\u003EProduct Discontinued\u003C/p\u003E\u003Cp\u003ERecommended replacement:\u003Cbr /\u003E \u003Ca class=\u0022text-blue-150\u0022 href=\u0022/hardware/dspro-stagegrid-4000\u0022\u003EDSPRO StageGrid 4000\u003C/a\u003E\u003C/p\u003E\u003C/div\u003E","documentPageDescription":"24-in, 12-out audio interface with premium preamps, easy SoundGrid connectivity and rugged design \u2013 the perfect stagebox for the eMotion LV1 live mixer.","tagline":"","departmentID":7,"gsfCategory":"","fixedPosition":false,"expectedShipping":"","productID":366,"upgrades":false,"demoType":0,"isInventory":false,"manualPDF":"https://assets.wavescdn.com/pdf/hardware/stg-2412-v2.pdf","sbsIncludedIn":0,"addToCartStatus":1,"isWishlist":false,"couponCode":"","couponCampaignID":0,"couponPrice":0.00,"couponStripeHTML":"","numberOfLessons":0,"courseDurationHours":0.00,"numberOfPlugins":0,"upgradeTargetID":0,"parentSKUNumber":"","categoryDisplayName":"","isProductOptions":false,"variantsMinimalPrice":0,"isVariantsPriceSame":false,"isPreorder":false,"optionOrder":0,"optionName":"","reviewsTotal":0,"rating":0,"saleEndDate":"0001-01-01T00:00:00","badgeClass":"","badgeText":""}]
""
SoundStudio I/Os require a SoundGrid driver installed in order to function. To install the driver, follow these steps.
Product, Support, Setups
Rich I/O for Live Sound
[{"imgpath": "/images/products/hardware/max/soundstudio-stg-2412.png"}, {"imgpath": "/images/products/hardware/max/soundstudio-stg-2412-1.png"} ]
Built to last and perform optimally under the most demanding touring conditions, the 4U, rack-mountable, rugged STG-2412 stagebox features 24 mic/line combo inputs with high-performance microphone preamps, 12 balanced line outputs, and a headphone amp with level control.
The STG-2412 connects easily to digital consoles and powerful DSP servers so you can mix, record, monitor, and soundcheck in real time—with the processing power of Waves’ world-class plugins.

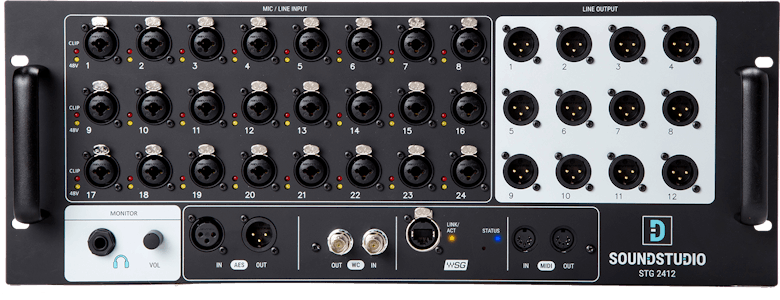

- 24 XLR/TRS mic/line combo inputs and 12 XLR line outputs
- Digital I/O: Word Clock, AES/EBU digital with XLRs, 5-pin MIDI DIN
- High-performance mic preamps with remote digital control
- Supports up to 96 kHz sample rates
- Powerful headphone output with level control
- Rugged, road-worthy 4U rack-mountable chassis
- Per-input 48V phantom power, with power-on and clipping LEDs
- etherCON SoundGrid network port for a secure connection
- Universal power supply, 100 - 240 VAC
- Designed to handle the rigors of the road, and deliver superb sound
Support
XLR Input
- Input Gain: Adjustable from 0 dB to 60 dB in steps of 1dB
- Frequency Response:
+0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
+0/-0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain) - Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
- EIN (Gain 60, 150 ohms) -128 dBu A weighted
- THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023%
- Phase Response: +/-10 Deg 20 Hz to 20 kHz
- Input impedance : 2k ohms
- 48V phantom power available per input
TRS Input
- Input Gain: Adjustable from 0 to 60 dB in steps of 1dB
- Frequency Response:
+0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
+0/-0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain) - Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
- EIN (Gain 60, 150 ohms) -128 dBu A weighted
- THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023%
- Phase Response: +/-10 Deg 20 Hz to 20 kHz
- Input impedance: 10k ohms
XLR Balanced Outputs
- Selectable maximum output level: +18 dBu or + 24 dBu
- Frequency Response:
+0/-0.2 dB 16 Hz to 22 kHz @ 48 kHz sample rate
+0/-0.2 dB 17 Hz to 40 kHz @ 96 kHz sample rate - THD+N (Measured at 1 kHz, Gain = 0) 0.001%
- Output impedance: 40 ohms
Digital I/O
- AES-3, AES-EBU Stereo Output. Output sample rate 44.1 kHz to 96 kHz
- Word clock input: Standard 5 Volt square wave. 50% duty cycle.
- Word clock output: 1X sample rate Standard 5 Volt square wave. 50% duty cycle.
- Word clock Input: 1X sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz.
Headphone Output
1 watt per channel into 32 Ohm headphones.
Power
Universal input power supply 100V-240 VAC, 50/60 Hz, 1.0 Ampere.
Dimensions
19 x 7 x 10 inches (482 x 177 x 254 mm)
Weight
19.6 lb (8.9 kg)
Setups
In the below setups, on-stage instruments and microphones are connected to the STG2412 which is remotely controlled from the LV1 mixer at front-of-house. The audio is processed on a SoundGrid Server and then outputted to stage-monitors and/or the PA system. An optional DAW computer (with the SoundGrid Driver installed) can be added to the setup for recording the show, playing back audio and for virtual soundcheck.
Live Mixing
- Host computer running the eMotion LV1 mixer (see system requirements)
- SoundStudio STG2412 SoundGrid stagebox
- SoundGrid Server (add a second server for processing redundancy)
- SoundGrid-qualified network switch
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
Live Mixing with Recording/Playback (Virtual Soundcheck)
- Host computer running the eMotion LV1 mixer (see system requirements)
- SoundStudio STG2412 SoundGrid stagebox
- SoundGrid Server (add a second server for processing redundancy)
- SoundGrid-qualified network switch
- DAW computer for recording/playback with the SoundGrid Driver installed (optional)
For complete information on supported cable types and lengths, visit the Ethernet Cables for SoundGrid Systems page.
